Description
Brand: Renogy
Features:
- Automatically detect 12V or 24V DC system voltages Innovative MPPT technology with high tracking efficiency up to 99% and peak Conversion efficiency of 98%
- Die-cast aluminum design for heat dissipation and The capability of measuring the battery’s temperature and remote monitoring Customizable charging voltages
- Charges over-discharged lithium-ion batteries Error code detection for easy self diagnoses

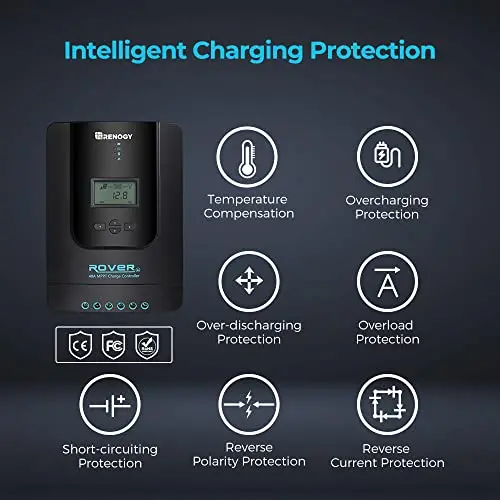

- Compatible with various Deep Cycle battery options: Sealed, Gel, Flooded, and Lithium Electronic protection: Overcharging, over-discharging, overload, and short circuit Reverse protection: Any combination of solar module and battery, without causing damage to any component 4-stage charging: Bulk, Boost, Float, and Equalization and LCD screen with programmable charging parameters

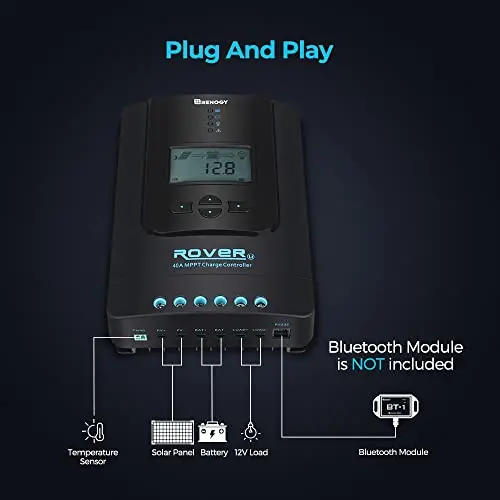

- RS232 port allows the Rover to communicate with the BT-1 Bluetooth module, which can pair with the Renogy DC Home smart phone app
Binding: Lawn & Patio
Release Date: 04-04-2016
model number: RNG-CTRL-RVR40
Part Number: RNG-CTRL-RVR40
Details: “Specifications Rated Battery Current :40A Rated Load Current:20A Max. PV Input Short Current:50A Max. Battery Voltage :32V Max. Solar Input Voltage :100VDC Charge circuit voltage drop:≤ 0.26V Discharge circuit voltage drop : ≤ 0.15V Working Temperature :-35°C to +45°C Max. Terminal Size :8AWG Rated Load Current :10% to 90% NC Net Weight :4.41 lb. Overall Dimension :9.37 x 6.81 x 2.85in. “
EAN: 0816360024651
Package Dimensions: 11.0 x 8.3 x 5.3 inches
